Description

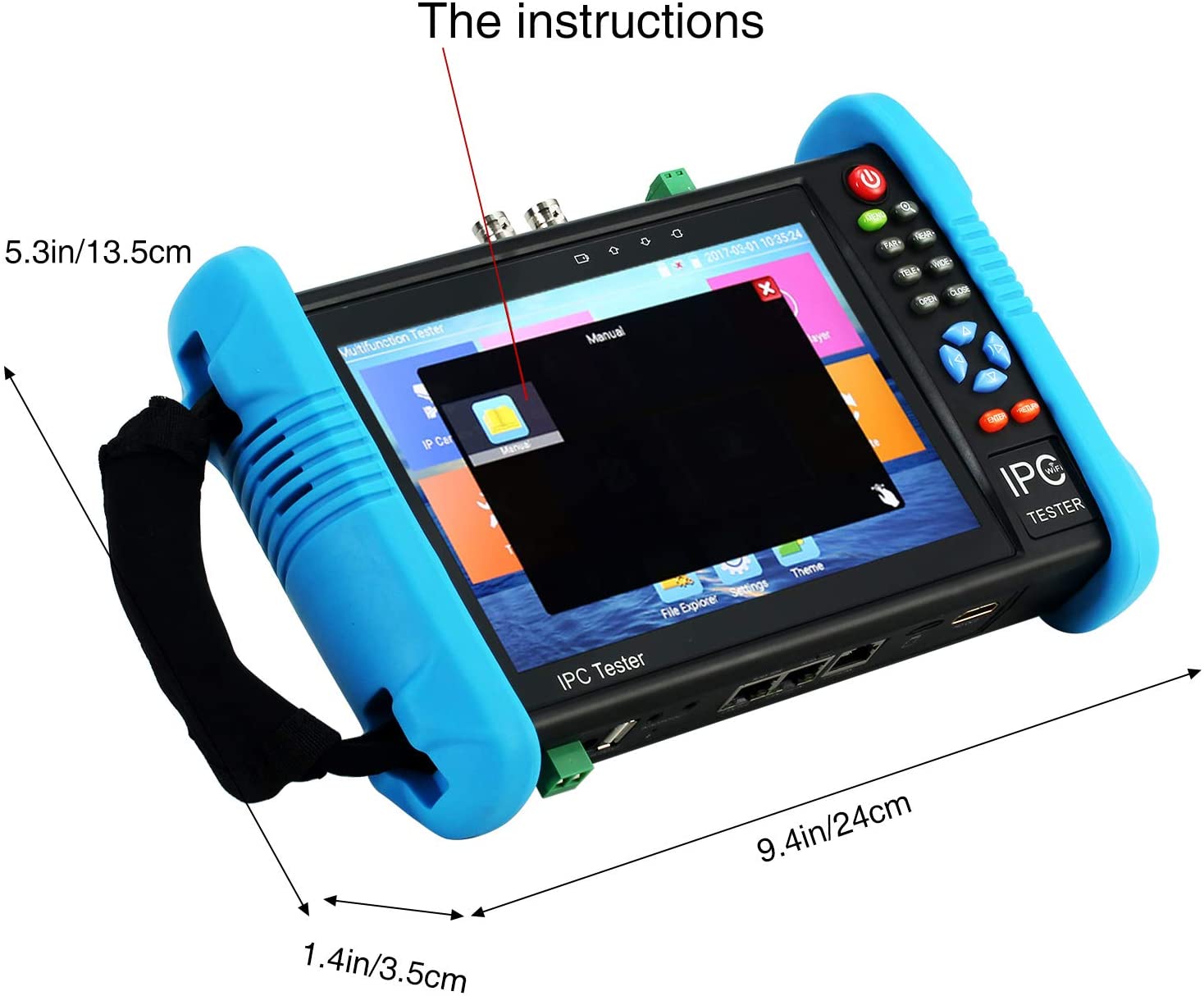

• Designed for maintenance and installation of IP analog and HD coaxial cameras as well as other security equipment;7 inch IPS touch screen,1280*800 resolution;8GB SD card included;IP & CVBS camera test, PTZ controller
• H.265/H.264, 4K video display via mainstream,4K video files and MKV/MP4 media files play;HDMI input & output, support 1080p. Built in WIFI,display image from the wireless camera;create WIFI hotspot;Customers self update software, you can install apps with android version, such as Skype, wechat etc
• 5MP TVI(2560x1944P 12.5FPS) test, 4MP AHD(2560x1440P 15F/25F/30F) test, 4MP CVI(2560x1440P 25F/30F) test, 4xzoom, video record and playback, coaxial PTZ control and call camera OSD menu;Rapid video, just by one key to detect all network cameras and auto display;Rapid ONVIF, auto log in and display image from the camera, activate Hikvision camera, and also can create testing report

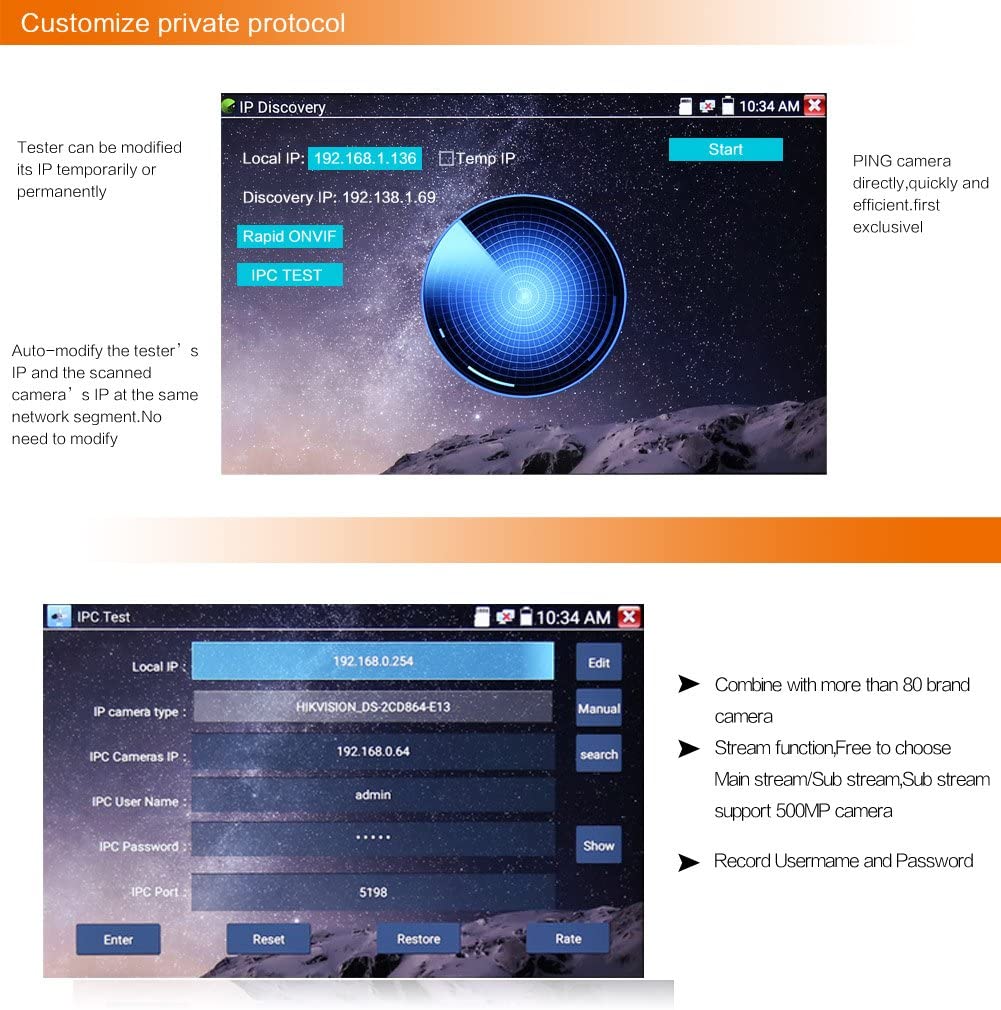

• IP discovery, it can auto-scan the whole network segment IP, and auto-modify tester’s IP address,shortcut button, drop-down menu. Rapid ONVIF, auto view video and create testing report. RJ45 cable TDR test, cable quality test. UTP cable tester. TesterPlay(screen projection): tester, android version mobile phone and PC display at the same time;IP and analog testing at the same time, converter test from analog to digital with dual test window IP & CVBS
• 7.4V/5000mAh Lithium Ion Polymer Battery( MSDS & UN38.3 Test Recognized), after 5-6 hours charging, working time lasts 10 hours; PoE DC48V power output, Max power 24W, 12V /2A power output/5V 2A power output, as a power bank.(Note:The product box and manual are generic and include all functions.The actual function of this product is subject to the description.)
